TECHNICAL DATA
MODEL TS350
MAXIMUM EXTENDED MACHINE HEIGHT 1050 mm
MAXIMUM LENGTH 890 mm
MAXIMUM WIDTH 585 mm
LOWEST MACHINE HEIGHT 685 mm
CUTTING DEPTH (SAW BLADE 350) 125 mm
TOTAL WEIGHT 55 kg
MAXIMUM CUTTING LENGTH 410 mm
ELECTRIC WATER PUMP
230V/50 HZ PUMP
(2000 LITRES PER HOUR)
ELECTRIC MOTOR SPECIFICATIONS:
MOTOR 230V/50Hz
MOTOR OUTPUT 2200W
ENGINE SPEED 2950 rpm
Carriage height adjustable
with crank handle
Price:
799,- €
incl.
diamond cutting blade
transport costs (DE):
80,- €
All
Prices incl. taxes
-------------------------------------------------
SPECIAL ADVANTAGES
With the removable plastic pan, this machine is light weight in its
category, despite its stable construction. Therefore, it can be easily
set up and dismantled by one person. It has wheels attached to the rear
supporting legs for easy transport on the construction site. A cutting
head that can be continuously lowered is another advantage over
conventional machines of this type.

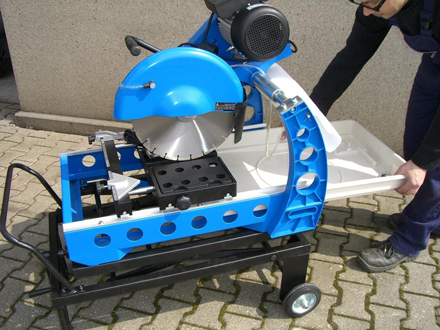

Professional
contractor saw with cutting head that can be continuously lowered for
cutting all construction materials, such as concrete pavement, concrete
slabs, clinker brick, kerbstone, tiles, etc. With the different types of
diamond cutting wheels, you can cut a wide range of materials with this
wet cutting table saw. It can be used for concrete pavement or slabs,
marble or granite slabs, Poroton blocks or other abrasive materials. It
has a wide variety of uses. The solid mobile substructure provides for a
very stable frame and ease of movement around the construction site. The
solid, fully-cast frame ensures a long service life. The sliding bench
mounted on high-quality ball bearings makes work much easier.
 |

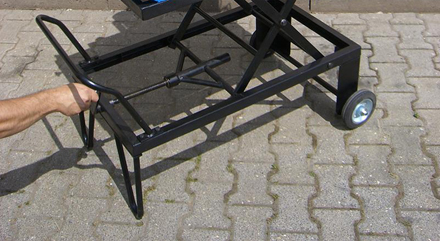

mobile
substructure with crank handle is variable adjustable in height
transport position
the removable plastic pan is
very easy to clean
extendable
sliding bench |
