MF3
Technical Details
Engine: Honda GX160 5.5 HP (4.1kW)
4-stroke petrol engine with recoil starter
Tyres: 4.00-8"
Tiller width 60cm with quick fit
adjustable 50-35
Weight: approx. 80 kg
Steering bar: Steel tube bar on
silent bearings 180° swivel
height and side adjustment by hand
Clutch: Hand-operated
dry disc clutch
Transmission: With easy shift gears
2 speeds: 1 forward and 1 reverse gear
Safety: Dead man's brake on steering bar
Technical Details
Optional
accessories:
- Potato Plow 0,28m
pic
- Ridge Plow 1,0m / 1,30mtr.
- Ridge Plow
pic
- Tiller 50cm (35cm)
- Snow Blade 80cm
pic
- Sweeper 80cm
pic
- Bar Mower 87cm incl. runners
- Bar Mower 97cm incl. runners
pic
- Bar Mower 122cm
incl. 1 Set of replacement blades

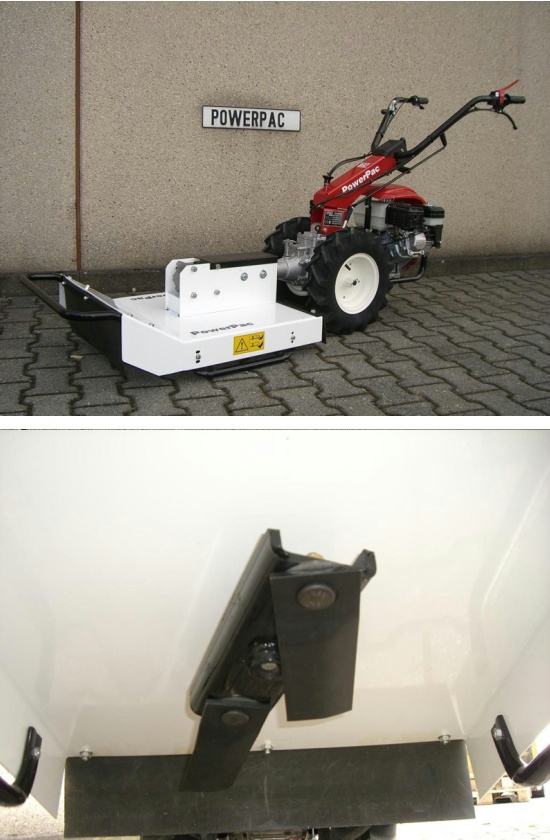

- Sickle Mower 55cm
pic
- Snow Blower 46cm
pic -
pic2
- Seat with spring borne and
foot service brake
pic |
MF5
Technical Details
Engine: HONDA GX270 9HP (6.6kW)
(optional GX340 11HP)
4-stroke petrol engine with recoil starter
Tyres: Agricultural implement tyres 5.00-10"
Tiller width 70cm with quick fit
adjustable 58-48-40 cm
Weight: 130 kg
Steering bar: Steel tube bar on
silent bearings 180° swivel
height and side adjustment by hand
Clutch: Hand-operated
dry disc clutch
Transmission:
Reverse gear unit with easy shift gears
pic
3 forward and 3 reverse gears (EN 709
Norm)
Offers 6 speeds in the two directions
with limited slip differential
pic
PTO: Transmission independent PTO
with reversing stop
Extras: Trailer coupling
Safety: Dead man's brake on steering bar
Technical Details
Pictures:
1 -
2
Optional accessories:
- double tyres
pic
- Potato Plow 0,28m
pic
- Ridge Plow 1,0m / 1,30mtr.
pic
-

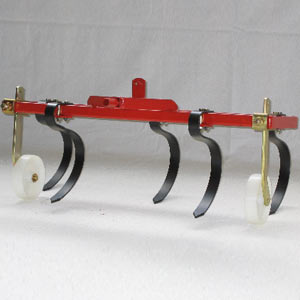

Cultivator 1,0mtr. / 1,30mtr.
pic
-
Reversible Plough 180°
pic
- Tiller 60cm (50-35cm)
- Tiller 65cm (57-44-35cm)
-

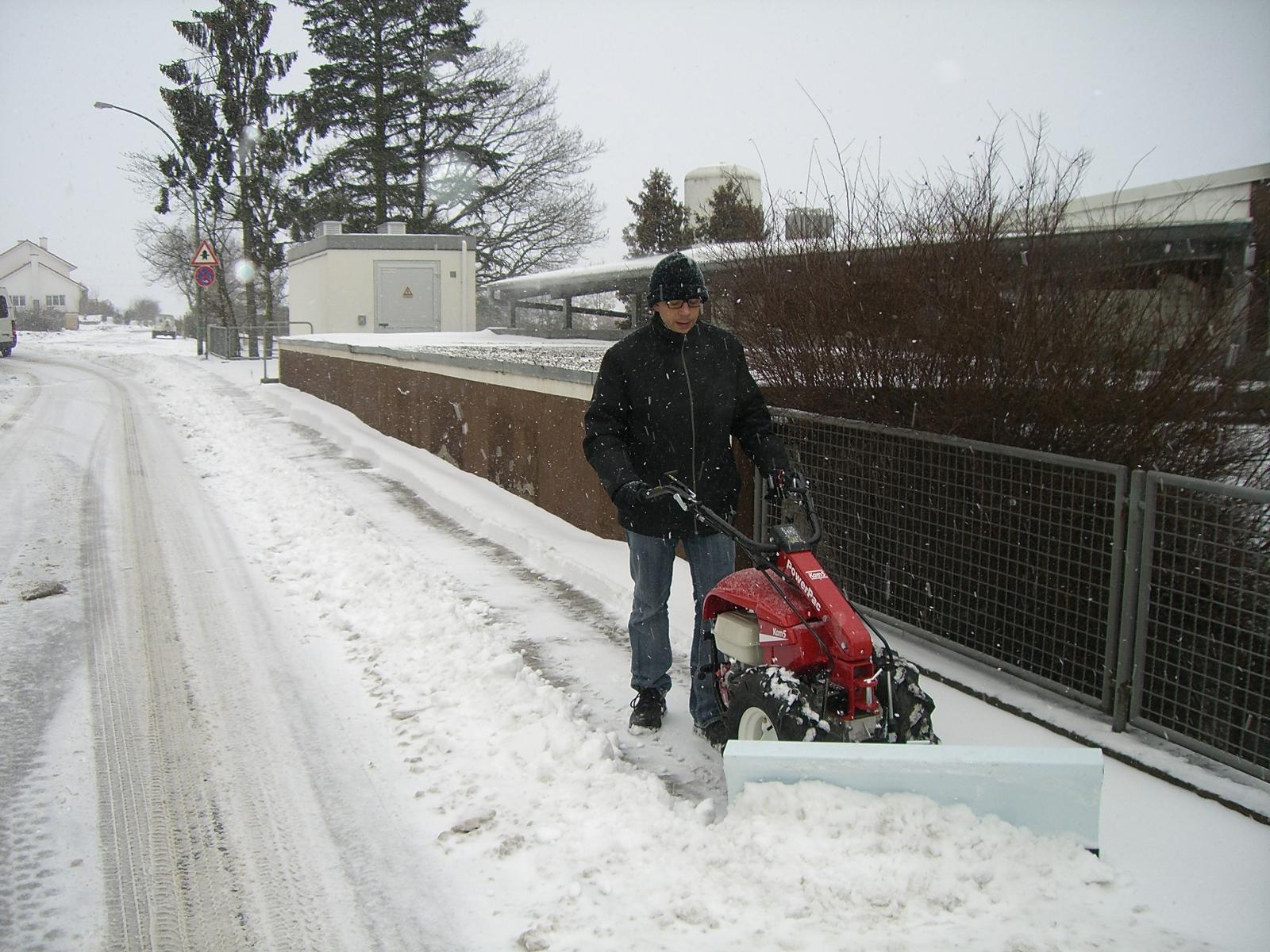

Snow Blade 100cm
pic1
-
pic2
VIDEO

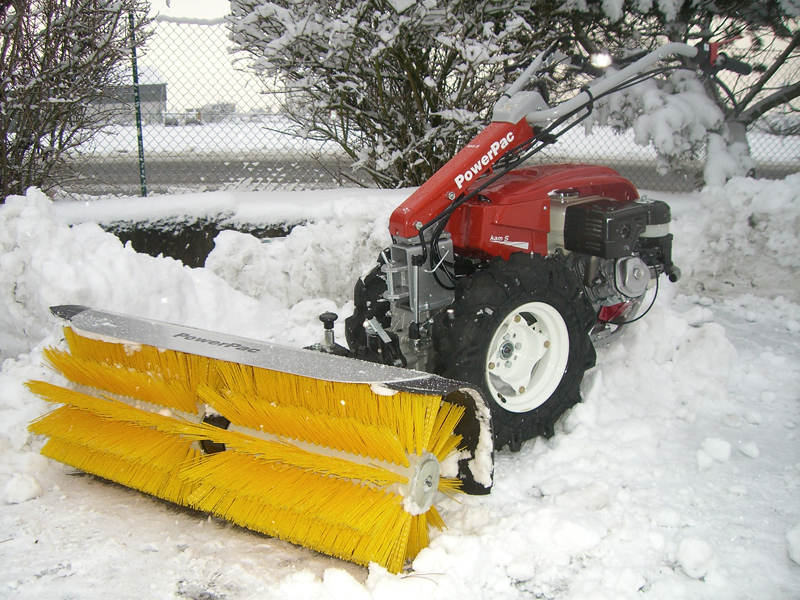

- Sweeper 100cm
pivoting
brush
roller diameter 38cm
pic1
pic2

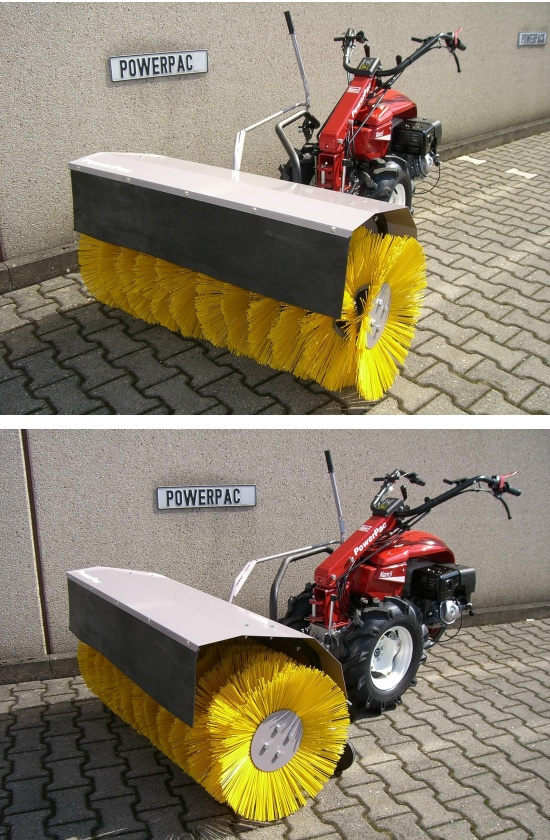

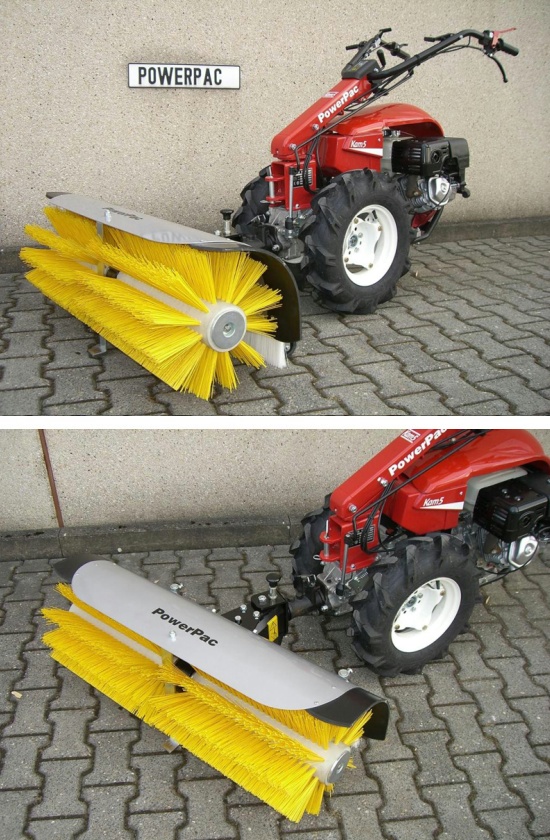

- Sweeper 100cm
pivoting
brush roller diameter 48cm
pic VIDEO
- Bar Mower 87cm incl. runners
pic
- Bar Mower 97cm incl. runners
- Bar Mower 122cm
incl. 1 Set of replacement blades
pic
-
Sickle Mower 62cm
pic
-
Flail mower 65cm
pic
-
Snow Blower 60cm
pic
discharge throwing distance
10-15m
-

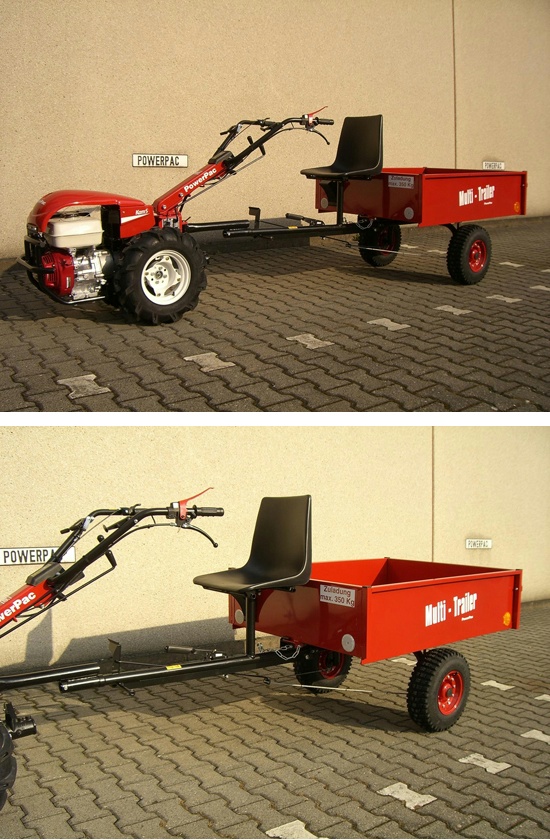

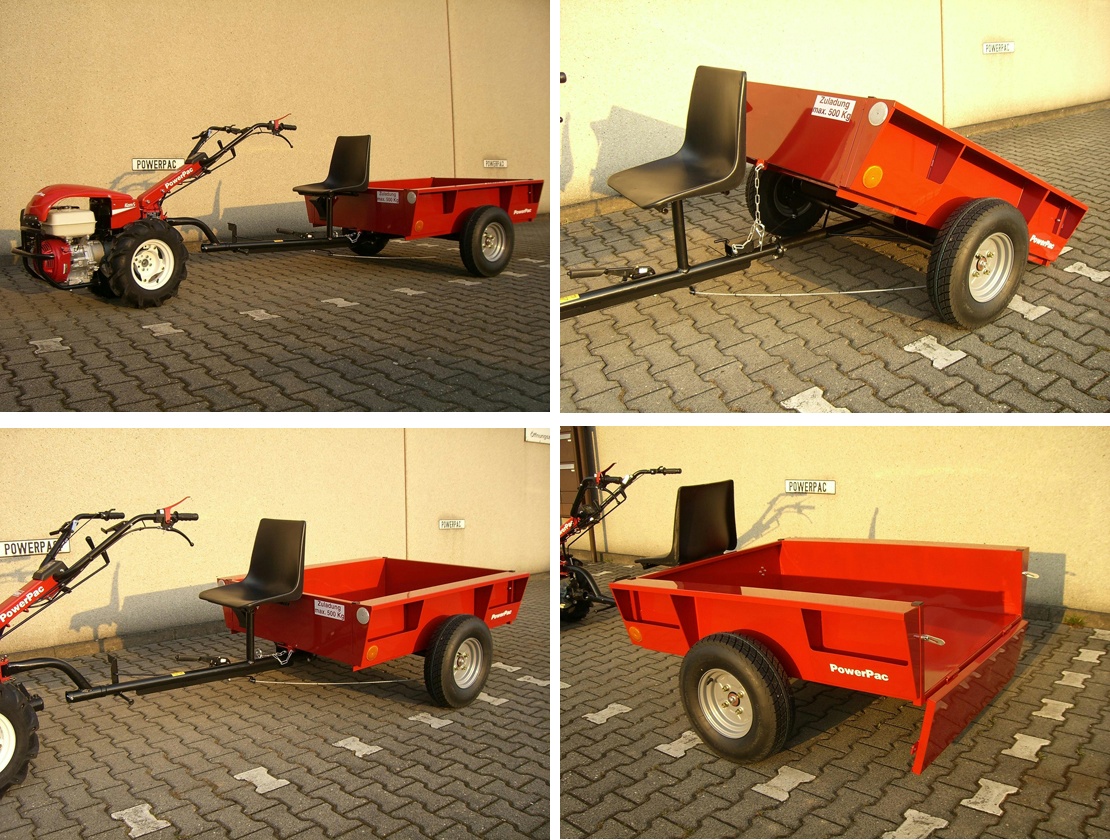

Trailer max. Payload 500kg
pic
- Seat with spring borne and
foot service brake
pic
- Seat with spring borne and
foot service brake and Bar Mower
pic

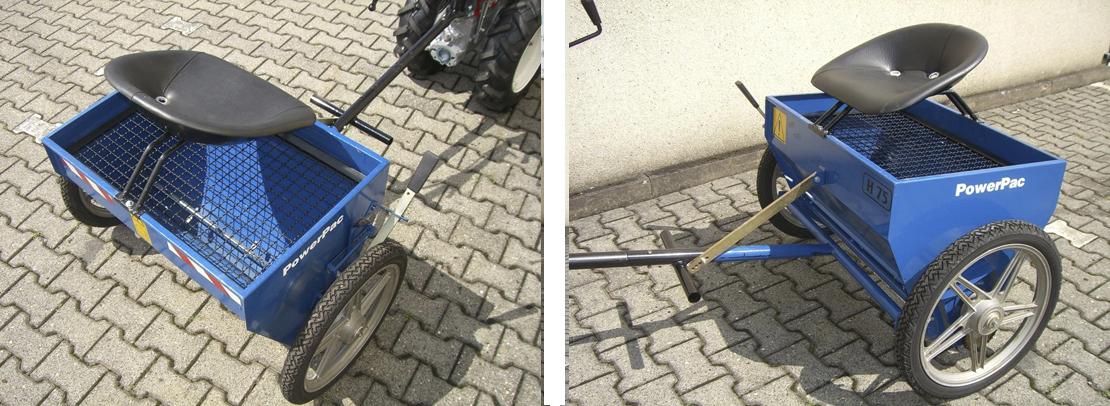

- Salt- and Manuring spreader
equipped with
pneumatic wheels
Capacity 130ltr., spreading
width 80cm and
total distance of approx.
4-6km
pic
VIDEO
|
MF17
Technical Details
Engine:
Kohler KD15440 AE 8,0kW (10,9HP)
Diesel engine with electric starter
Tyres: 6.50/80x12"
Tiller width 80 cm
adjustable 60 cm
Weight: 250 kg
Steering bar: Steel tube bar on
silent bearings 180° swivel
height and side adjustment by hand
Clutch: Single, dry clutch friction disc
2x PTO shaft: Standard PTO shaft with
2 speeds and independent PTO
with reversing stop
Transmission: 4 forward gears and 1 reverse
with drum brakes (steering clutch brakes)
Extras: Trailer coupling and lights
Safety: Dead man's brake on steering bar
Technical Details
Pictures:
1
Optional accessories:
- wide tyres 23/10.50-12"
pic
-
Reversible Plough 180°
pic
- Ridge Plow
pic
-
Cultivator 1,0mtr. / 1,30mtr.
pic
-
Tiller 90cm (70cm)
-

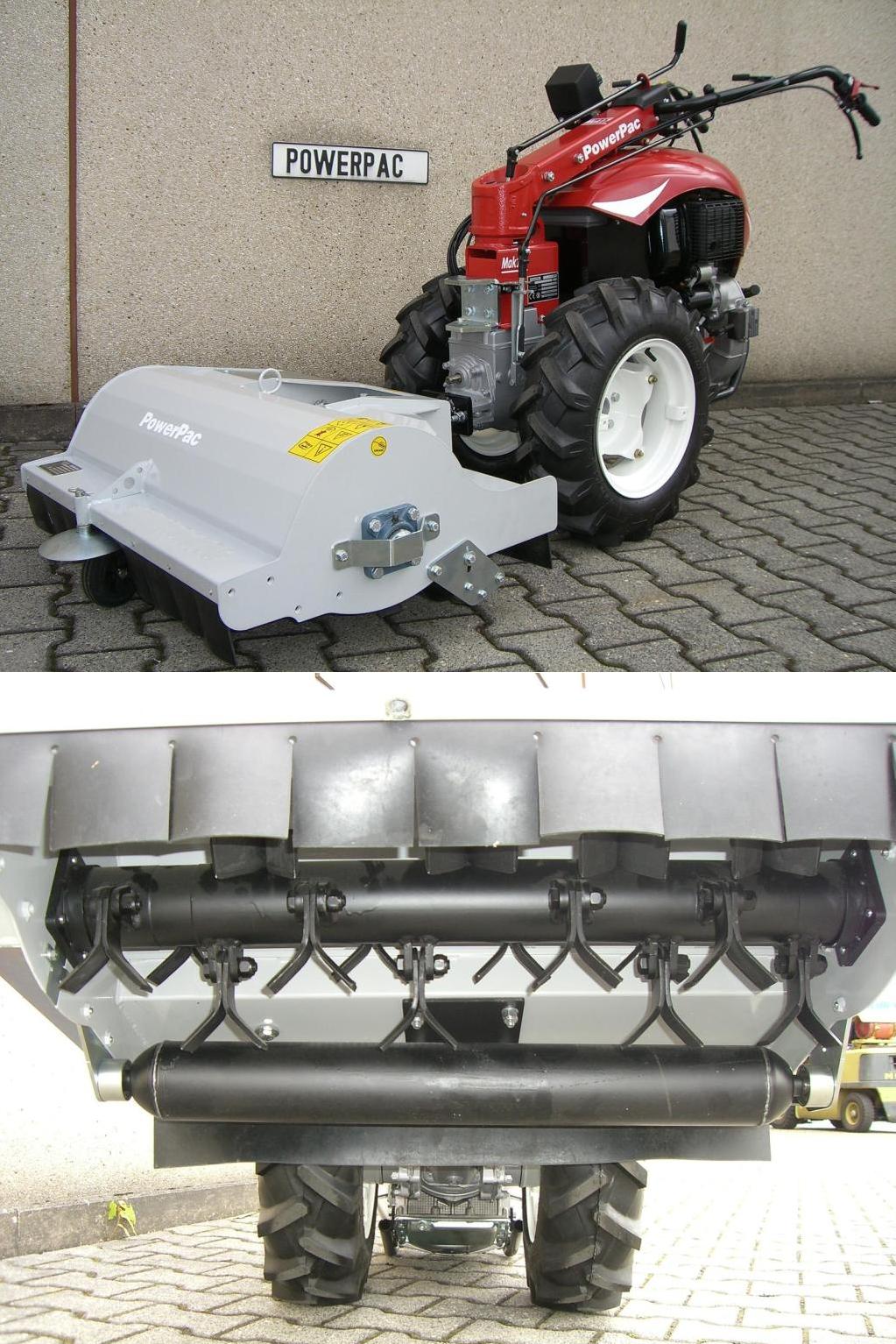

Flail mower 65cm or 85cm
- Sweeper 100cm
pivoting
brush
roller diameter 48cm
pic
- Bar Mower 122cm incl Quickfit /
incl. 1 Set of replacement blades
pic
-
Snow Blade 100cm
pic
- Sickle Mower 62cm or 80cm
pic
- Drum/Rotary Mower 80cm
pic
- Rotary Harrow 84cm
pic1
-
pic2
- Compaction rake 120cm
(Levelling triple rake)
with selfbalancing system
pic
optional with wheel set
pic
- Stoneburier 64cm incl. rear roller
in
expanded metal, depth adjustment and
automatic slip clutch
pic1 -
pic2
-
Snow Blower 80cm
discharge throwing distance 10-15m
pic
-

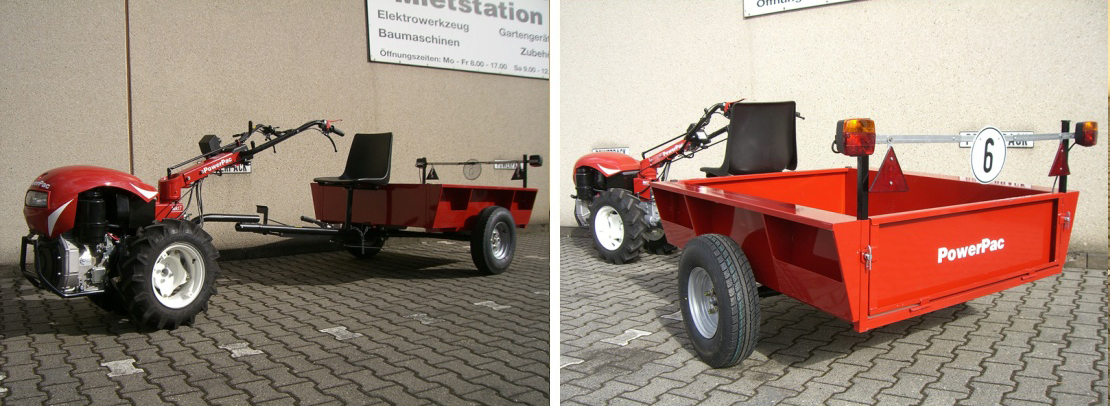

Trailer max. Payload 500kg
pic
- Seat with spring borne and
foot service brake
pic
- Seat with spring borne and
foot service brake and Bar Mower
pic

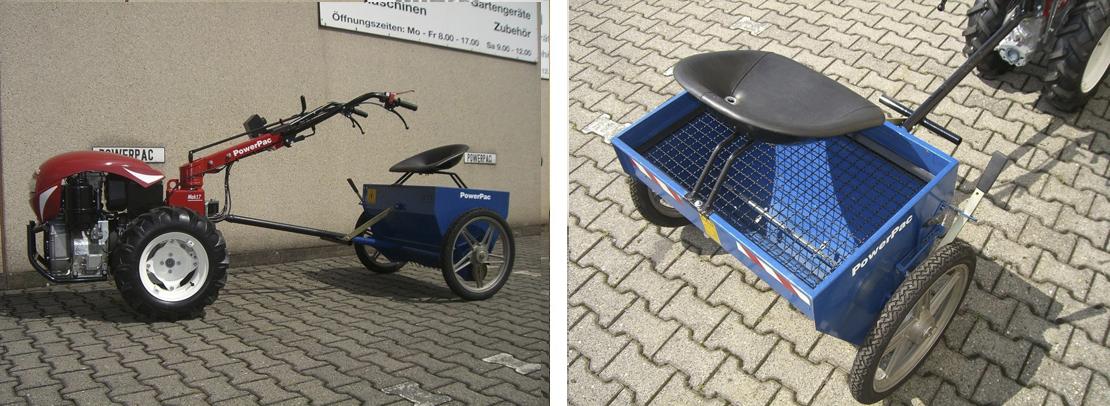

- Salt- and Manuring spreader
equipped with
pneumatic wheels
Capacity 130ltr., spreading
width 80cm and
total distance of approx.
4-6km
pic
|
